How to print your Shipping Labels in ZPL

Here's how to print your labels in ZPL

Using the New Experience?

The New Experience may differ in some details.
Learn more in the article related to the New Experience.







Printing your Shipping Labels in ZPL has never been easier with ShippyPro.

Learn how to automate this time-consuming process and save 40 minutes every day!

Here's how to print your labels directly from ShippyPro if you're using a Thermal Printer.🔍
​

Summary:

  1. Before you start

  2. Install QZ Tray

  3. How to print multiple ZPL Labels

  4. How to print ZPL Labels singularly

  5. Troubleshooting & Errors

1. Before you start

  1. Use Chrome as browser. (QZ Tray won't work from other browsers)

  2. Set ZPL format as default from Carriers > Edit for each carrier you connected.

  3. Create a manual shipment for testing following this guide.

2. Install QZ Tray

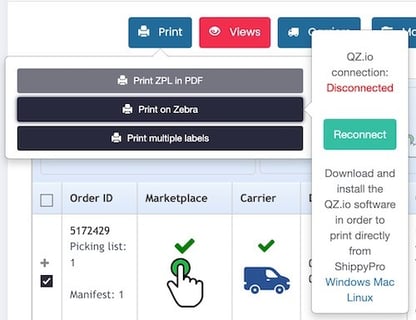

From Label Creator > Shipping Labels, click on the first blue button Print > Print on Zebra.You need to install QZ Tray software.

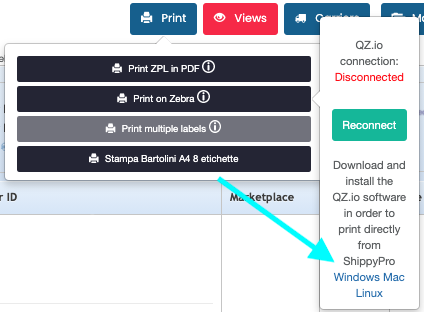

Click on Windows or Mac or Linux to start downloading automatically.

Click here to learn how to install QZ Tray on Windows: How to set up thermal printer on Windows

Click here to learn how to install QZ Tray on Mac: How to set up thermal printer on Mac



Once you installed QZ Tray, remember to set up Automatically start clicking on the QZ Tray icon in the toolbar, in order to open it when you switch on your computer.

3. How to print multiple ZPL Labels

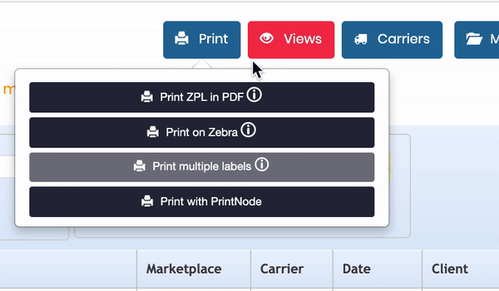

  • To print multiple ZPL labels, select the orders you'd like to print and click on Print > Print on Zebra.

  • From the window that pops up, click on Print.
    If you want to change printer, click on Printer Settings and click on the X next to the printer name.





Remember to add print dimension needed for this format (4x8 for A6 ZPL) from My Profile > Print Preferences before printing.


​ 4. How to print ZPL Labels singularly

To print your ZPL labels singularly, just click on the violet icon under Documentation:



Pro Tip: You can select the format you'd like to apply to your labels from Carriers > Edit and then switch from PDF to ZPL or viceversa.

5. Troubleshooting & Errors

Did you know that you have the possibility to automatically print all your labels once generated?

Try to take a look at the link below to discover how!



Zebra button is not clickable

If the Print on Zebra button is not clickable, it means that the label selected is a PDF. You should check the format selected on Carriers > Edit and create a new label.



I get "Please confirm again the order printing selection from the menu" message

  • Click on F5 in order to refresh the page and then repeat the procedure.

  • Verify to have correctly selected all the orders to print.



What can I do if I receive QZ Tray Invalid Signature / Expired certificate error message?


  • As a first thing, verify if your Antivirus is active, if so, disable it to proceed with the set up.

  • Check also if your Carriers have printer options set on ZPL / Zebra.

  • Then Uninstall and Install QZ Tray again by clicking on Print > Print on Zebra

    If nothing above seems to work, try to also:

    • Clear your browser cache multiple times

    • Access from Google Chrome incognito mode

    • Delete QZ Tray and install it again, if Chrome still doesn't work, try running it on Firefox

    • Try to use Printnode instead



Why do I get Error 524?

This error means that you're trying to print too many labels at the same time, please try with a smaller number.


Why is a blank page printed along with the label?

This may occur if the printer calibration is incorrect. Please check the printer calibration and try printing the label again.
